Slide 32 of 110

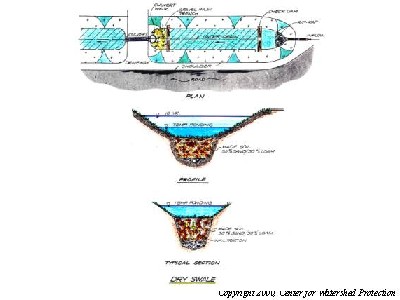

This detailed schematic of a dry swale shows both the plan view and the typical cross section. The sandy loam layer allows the stormwater to be filtered through the media before it enters the drainage system or receiving water.
