Slide 115 of 119
Notes:

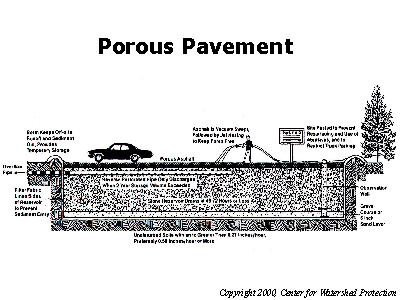

Porous pavement is a permeable pavement surface with an underlying stone reservoir to temporarily store surface runoff before it infiltrates into the subsoil. This porous surface replaces traditional pavement, allowing parking lot stormwater to infiltrate directly and receive water quality treatment. There are a few porous pavement options, including porous asphalt, pervious concrete, and grass pavers. Porous asphalt and pervious concrete appear the same as traditional pavement from the surface, but are manufactured without �fine� materials, and incorporating void spaces to allow infiltration. Grass pavers are concrete interlocking blocks or synthetic fibrous gridded systems with open areas designed to allow grass to grow within the void areas. Other alternative paving surfaces can help reduce the runoff from paved areas but do not incorporate the stone trench for temporary storage below the pavement. While porous pavement has the potential to be a highly effective treatment practice, maintenance has been a concern in past applications of the practice.
The ideal application for porous pavement is to treat a low traffic or overflow parking area. Porous pavement may also have some application on highways, where it is currently used as a surface material to reduce hydroplaning
