Slide 97 of 119
Notes:

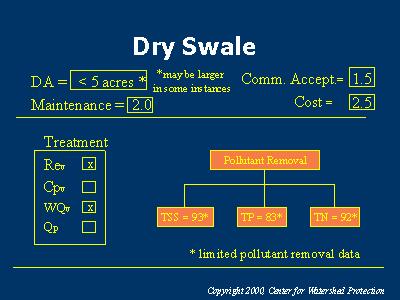

A dry swale provides water quality storage as well as recharge volume. The cost is low, little maintenance is required, and it is well-accepted by the community. Pollutant removal efficiencies are 93% for TSS, 83% for TP, and 92% for TN, although these numbers are based on limited data.
