Slide 71 of 119
Notes:

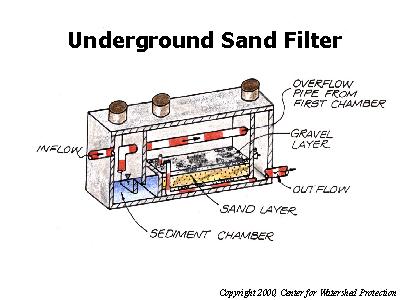

The underground sand filter is a modification of the surface sand filter, where all of the filter components are underground. Like the surface sand filter, this practice is designed to treat only the smaller water quality events. Underground sand filters are expensive to construct, but consume very little space. They are well suited to highly urbanized areas.
