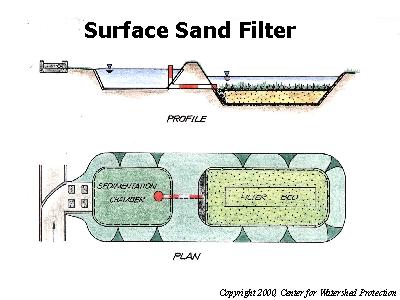

The surface sand filter is the original sand filter design. In this practice both the filter bed and the sediment chamber are above ground. The surface sand filter is generally designed as an off-line practice, where only the water quality volume is directed to the filter. The surface sand filter is the least expensive filter option, and has been the most widely used.
