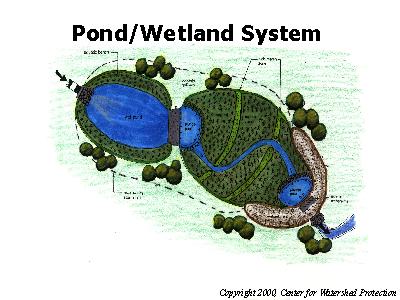

The pond/wetland system combines the wet pond design with a shallow marsh. Stormwater runoff flows through the wet pond and into the shallow marsh. Like the extended detention wetland, this design requires less surface area than the shallow marsh because some of the volume of the practice is in the relatively deep (i.e., six to eight feet) pond.
