Slide 16 of 119
Notes:

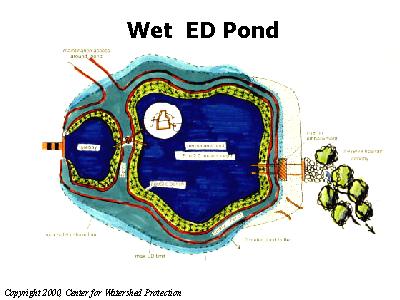

The Wet Extended Detention Pond combines the treatment concepts of the dry extended detention pond and the wet pond. In this design, the water quality volume is split between the permanent pool and detention storage provided above the permanent pool. During storm events, water is detained above the permanent pool and released over 12 to 48 hours. This design has similar pollutant removal to a traditional wet pond, and consumes less space. Wet Extended Detention Ponds should be designed to maintain at least half the treatment volume in the permanent pool. In addition, designers need to carefully select vegetation to be planted in the extended detention zone to ensure that the selected vegetation can withstand both wet and dry periods.
