Slide 50 of 100
Notes:

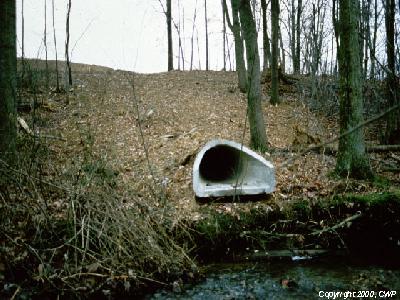

Here is an example of a flared end section outfall where tree clearing has been minimized. This outfall is lacking additional protection in the form of rip-rap which may result in a scour hole and subsequent head cutting.
