Rooftop
Disconnection
This credit can be applied
to encourage disconnection of rooftops, thus promoting overland treatment of
these surfaces. The credit needs to clearly document criteria to make this disconnection
successful. Credits can be applied to water quality, recharge, and quantity
control requirements.
Rooftop
Disconnection: Summary
|
Goals |
Encourage
the use of overland flow or infiltration areas to treat rooftop runoff. |
Stormwater
Management Objectives |
Water Quality/ Recharge |
Subtract the total
disconnected area from the site's impervious cover. |
Channel Protection,
Flood Control |
Adjust hydrologic parameters
of disconnected rooftops to reflect woods in good condition. |
Example Language:
In the rooftop disconnection
credit, disconnected rooftops are subtracted from the total site impervious
cover, and assigned a curve number for woods in good condition. In order to
receive the credit, disconnections must meet the following criteria:
- The rooftop cannot be
a designated hotspot.
- Disconnection must ensure
no basement seepage.
- The contributing length
of rooftop to a discharge location shall be 75 feet or less.
- The rooftop contributing
area shall be no more than 1,000 sq. feet per disconnection.
- The length of the "disconnection"
shall be equal to or greater than the contributing rooftop length.
- Disconnections will only
be credited for residential lot sizes greater than 6000 sq. ft.
- The entire vegetative
"disconnection" shall be on a slope less than or equal to 3.0%.
- The disconnection must
drain continuously through a vegetated channel, swale, or through a filter
strip to the property line or STP.
- Downspouts must be at
least 10 feet away from the nearest impervious surface to discourage "re-connections."
- Disconnections are encouraged
on relatively permeable soils (HSGs A and B) without soil testing.
- In less permeable soils
(HSGs C and D), the water table and permeability shall be tested by a geotechnical
engineer to determine if a spreading device is needed to provide sheetflow
over grass surfaces. In some cases, dry wells, french drains or other temporary
underground storage devices may be needed to compensate for a poor infiltration
capability.
- For those rooftops draining
directly to a stream buffer, one can only use either the rooftop disconnection
credit or the stream buffer credit, not both.
- Credit is documented
the concept plan stage and then is verified with the final grading plan and
as-built certification, or as required by the appropriate review agency.
The use of this
credit should be accompanied with an educational program to ensure that disconnected
areas are not "reconnected" by residents over time.
The water quality
and recharge credit can be calculated with the following equation:
C = (ADR/AI)WQv
Where:
C = Rooftop Disconnection
Credit (ac-ft)
ADR = Disconnected
Roof Area (acres)
AI = Site
Impervious Area (acres)
WQv = Original
Water Quality Volume.
The recharge and water quality
volumes would both be reduced by the credit (C).
Quantity credit is achieved
by assigning disconnected rooftops a curve number equal to forest in good condition.

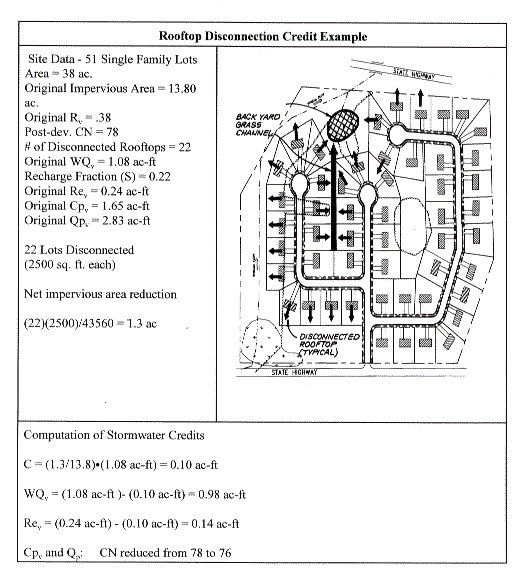

The example below illustrates how this credit would be applied.
